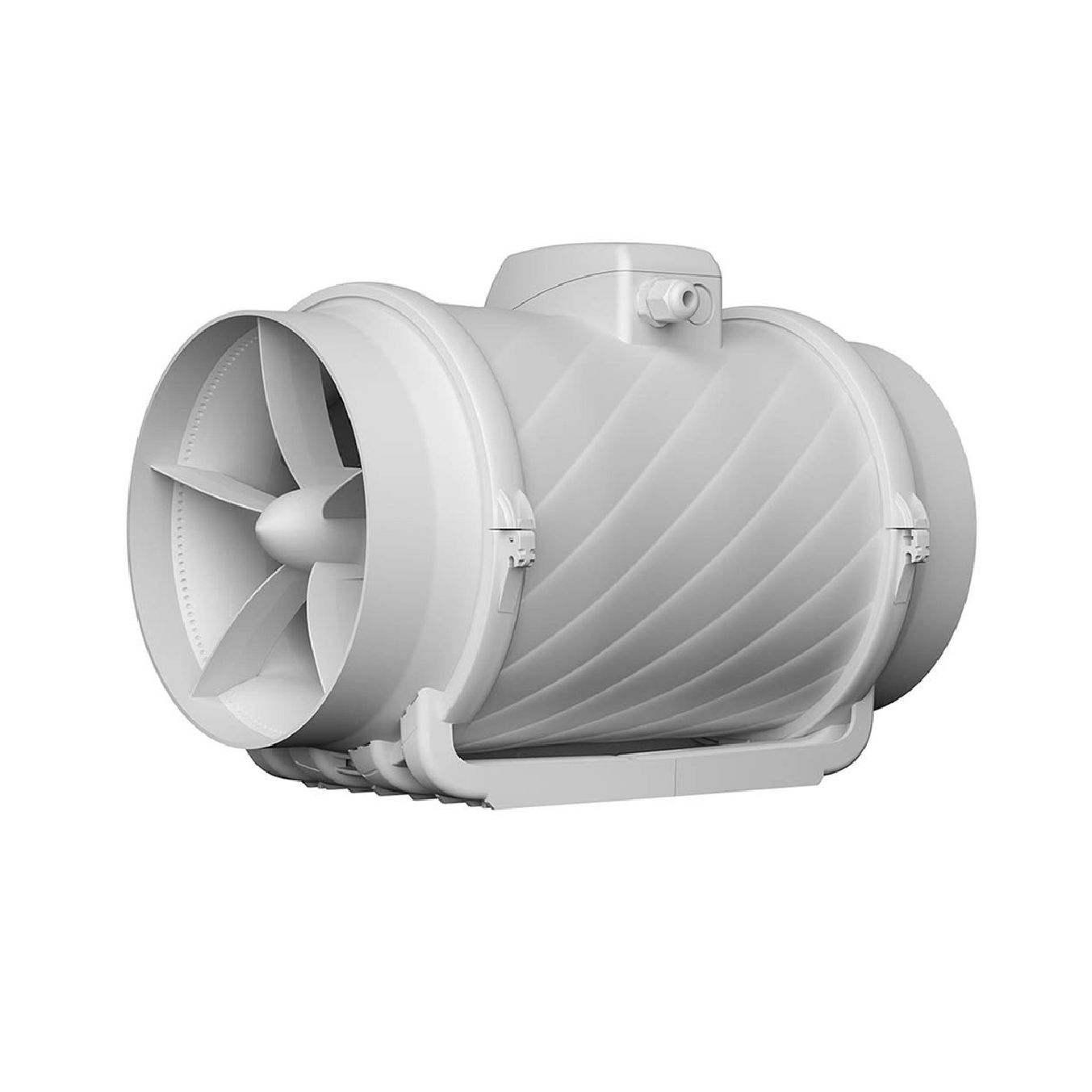

200mm mixed-flow duct fan with 2 speeds and removable central block

• Type: Mixed-flow inline extractor fan with duct size 200mm

• Application: Suitable for bathrooms, toilets, cloakrooms, small to medium domestic and office spaces; also usable in public buildings

• Motor: Long-life two-speed single-phase ball bearing motor

• Electrical: 220 V / 50 Hz

• Air volume/Power consumption/Noise level:

  • Speed 1: 850m³/h; 75 W; 50 dB

  • Speed 2: 1100m³/h; 105 W; 58 dB

• Protection: Overheat protection with restart

• IP Rating: IP44 (suitable for damp environments)

• Installation/maintenance: Easy to assemble/disassemble; removable central block with motor, impeller, and terminal box for easy installation and maintenance

• Installation orientation: Horizontal and vertical

Two-speed operation options

• Terminal connection (wired for two speeds by a control circuit)

• Switch button (included in the kit, installed separately) for easy speed switching. Also a wall switch unit can be purchased separately – please look into Ventilation Accessories category, product name Fan Speed Switch – PC-U-10A, product SKU: 96629

Practical considerations

• Duct length and resistance: Higher duct length, bends, or restrictions can affect actual flow. Speed 2 will provide the most airflow but may experience more pressure drops in long runs.

• Noise vs. performance: Speed 2 offers higher airflow (1100 m³/h) but higher noise (58 dB). Consider placement if noise may be an issue.

• Maintenance: The removable central block simplifies access for cleaning and maintenance.

• Safety and durability: IP44 rating provides splash and moisture protection appropriate for bathrooms and damp areas. Ball bearing motor guarantees 40 000 hours of continuous operation.
